The Modular 10 MW Grid Stabilizer (33 Modules × ~300 kW)

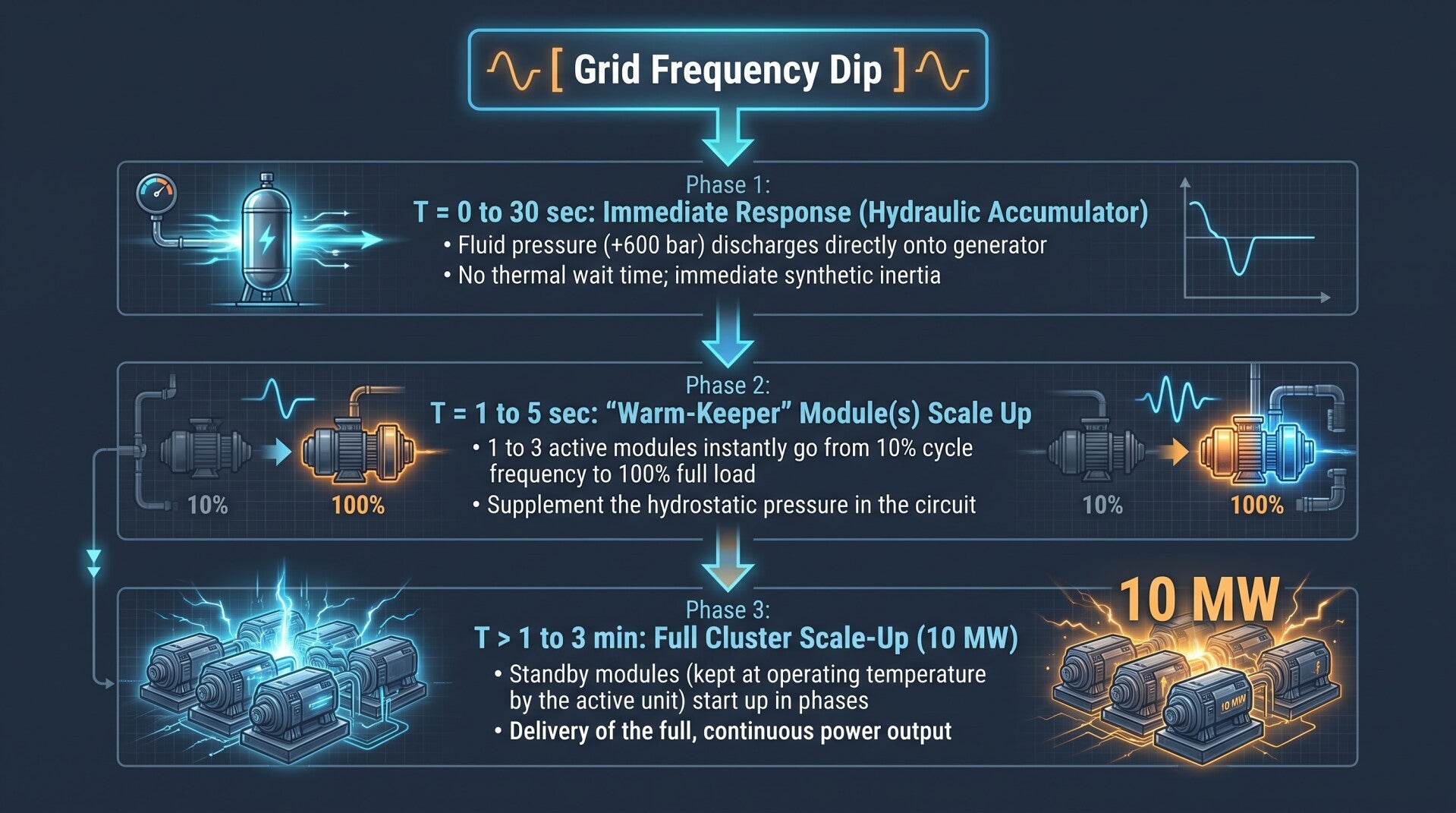

By distributing total output across an integrated rack or cluster of 33 parallel HPDD units, the system executes a staged dispatch sequence that delivers both millisecond-level frequency response and sustained baseload or peaking power:
- T = 0 to 30 Seconds (Direct Hydraulic Accumulator Discharge): Fluid pressure (+600 bar) discharges directly through a high-speed hydraulic motor and generator, providing immediate synthetic inertia with zero thermal lag.
- T = 1 to 5 Seconds (Warm-Keeper Ramp-Up): One to three active units instantly modulate from a 10% base cycle frequency to 100% full continuous output, restoring hydrostatic pressure in the primary manifold.
- T > 1 to 3 Minutes (Full Cluster Scaling): The remaining stand-by units—held continuously at optimal operational temperature by the active units—execute a synchronized start to deliver the full 10 MW nameplate capacity.
Core Engineering Advantages of the Cluster Architecture
- Thermal Hot-Standby via Waste Heat Integration:
- The active units operating continuously at low frequency produce high-grade process heat.
- A shared thermal circuit circulates this heat throughout the remaining idle modules.
- Cylinder liners and piston assemblies are maintained near operational temperature, eliminating thermal shock and unmanaged clearance deltas during rapid startup.
- Zero Throttling Losses at 10% Part-Load:
- While a conventional 10 MW gas turbine suffers severe aerodynamic and throttling penalties at 10% load, an HPDD unit modulates capacity via pulse-frequency modulation.
- Every single stroke executes at its design expansion ratio, peak cylinder pressure, and stoichiometric optimum, keeping idle fuel consumption exceptionally low.
- The Hydrostatic Accumulator as a Physical Damper:
- The high-pressure accumulator absorbs the critical RoCoF (Rate of Change of Frequency) transient during the initial seconds.
- This buffer grants the control platform sufficient time to ramp active modules to full stroke frequency and engage preheated reserve units without frequency sags.
- N+x Redundancy and High Availability:
- Routine maintenance on individual units leaves the remaining modules operational. Grid connection capacity is maintained, meeting the stringent uptime criteria required for primary and secondary reserve contracts (such as FCR and aFRR ancillary markets).
