#Autonomous, Zero-Emission Mining: HPDD-ACR-VCD Architecture

Revolutionizing Copper & Cobalt Processing for Critical Mineral Independence

In remote mining hubs like the Zambian Copperbelt, operational resilience faces four critical barriers: extreme grid instability, acute regional water scarcity, chemical degradation, and the environmental liabilities of tailings dams.

The integrated **HPDD-ACR-VCD** modular platform transforms raw ore extraction into a fully closed-loop, self-sustaining process. By unifying direct thermodynamic power generation, nitrogen-inerted acoustic cavitation, and precision sorting, this off-grid architecture operates 100% CO2-neutrally without relying on external utilities or fresh water supply.

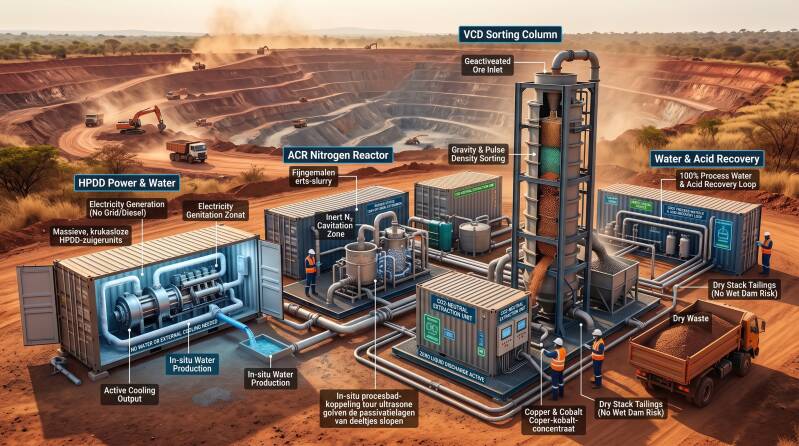

The Tri-System Architecture

1. Hydro Puls Direct-Drive (HPDD) — Autonomous Power & Cooling Core
The HPDD operates as a crankless, opposed-piston hydraulic pulsation and direct-drive generator, decoupling the facility from regional power grids.

High-Efficiency Electricity Generation: Eliminates dependency on unstable grid networks and diesel gensets via direct-drive fluidic power conversion.
Zero External Cooling Required: The system requires zero cooling water or evaporative cooling towers to operate.

Active Cold Delivery: Leveraging core thermodynamic expansion, the HPDD generates active refrigeration and cryogenic cooling on demand, stabilizing exothermic circuits and conditioning localized gas loops.
n-Situ Water Synthesis: Produces clean technical water directly through its thermodynamic condensation cycles.

2. Acoustic Cavitation Reactor (ACR) — Nitrogen-Inerted Leaching
Conventional leaching suffers from slow reaction kinetics and premature surface passivation on complex copper and cobalt ores.
Nitrogen-Inerted Cavitation: Utilizes pure nitrogen streams within the reaction zone to prevent unwanted mineral oxidation and reagent degradation.
Micro-Shearing of Passivation Layers: High-intensity acoustic micro-jets strip refractory surface crusts at the micron level, exposing pristine reactive faces to the lixiviant.Accelerated Kinetics: Cuts leaching cycle times significantly while slashing net acid and chemical reagent consumption.

3. VCD Sorting Column — High-Precision Hydro-Dynamic Separation
The VCD column replaces conventional, high-footprint flotation circuits and chemical-heavy separation steps.
Density-Based Precision Sorting: Separates heavy copper and cobalt concentrates from light gangue minerals with high selectivity.
100% Process Water Recovery: Recycles all pregnant leach solutions and process effluents in a closed loop, returning purified water back into the extraction cycle.
Dry-Stack Tailings (Zero Liquid Discharge): Discharges dense, dewatered mineral residue cake, completely eliminating the catastrophic collapse and contamination risks of tailings dams.

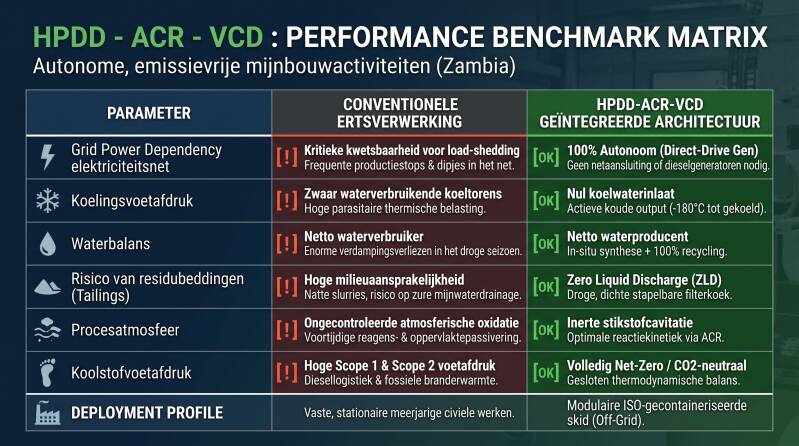

Performance Metrics at a Glance:
