Technical Abstract: The HPDD v26 TRT Architecture
Title: Synergetic Passive Stability in High-Frequency Linear Hydraulic Oscillators using Asymmetrical Thermal Management.

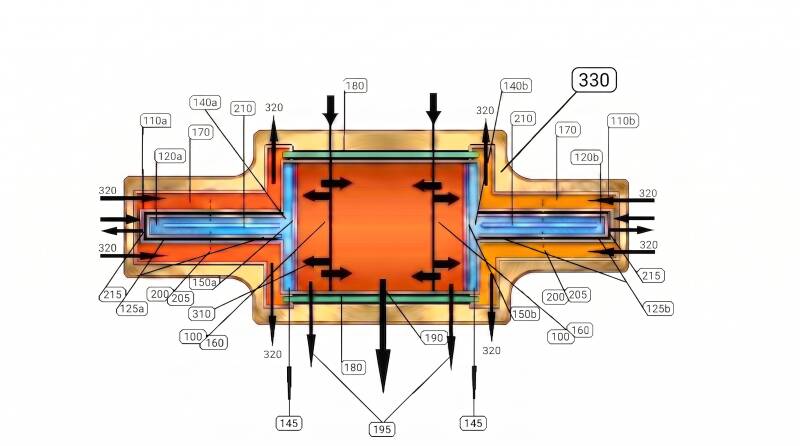

Abstract: This paper presents the architectural synthesis of the Hydro Puls Direct-Drive (HPDD) v26, a novel Thermal Reactor Transducer (TRT) designed for high-efficiency energy transduction. Unlike traditional internal combustion engines, the HPDD operates as a free-piston linear oscillator, utilizing a 40mm/160mm Inconel bellows interface to achieve a stable 600-bar hydraulic output.
The core research value lies in the parametric synergy between three critical domains:
-
Fluid Dynamics: The utilization of a 1:3 aspect ratio piston (40x120mm) operating within a 5-micron Nitrogen Ring Layer (NRL). The high aspect ratio, combined with squeeze-film stiffness at 100 Hz, provides inherent self-alignment and immunity to asymmetrical combustion forces.
-
Thermodynamics: A pre-conditioned intake strategy (325°C) serves a dual purpose: accelerating ammonia-hydrogen (NH3/H2) combustion kinetics and establishing a static thermal gradient. This ensures the jacket temperature remains "leading" relative to the piston, preventing mechanical interference.
-
Materials Science: The predictable linear expansion of Inconel 718 is utilized as a precision tuning tool. By operating at a steady-state 230°C, the architecture achieves a calculated 109 µm expansion, strictly defining the operational clearance for frictionless movement.
Conclusion: The HPDD v26 TRT demonstrates that through the alignment of geometry, thermal inertia, and material properties, extreme mechanical tolerances (5 µm) can be maintained passively. This system offers a disruptive alternative to conventional power units, achieving a theoretical system efficiency exceeding 62% through integrated ORC and turbo-compounding cycles.
