HPDD: Precision Hydrogen Compression to 600 Bar

The conventional approach to hydrogen compression at 600 bar relies on mechanical piston compressors that struggle with two fundamental flaws: mechanical wear due to side-loading (connecting rod stress) and inefficient cooling of the intense heat generated during compression. Our platform completely eliminates these legacy constraints.

1. The Linear-Free Compression Principle

• Direct Actuation: Unlike traditional systems, compression in our HPDD modules is performed by linearly driven pistons without crankshafts, eliminating the friction and mechanical fatigue inherent in rotary designs.

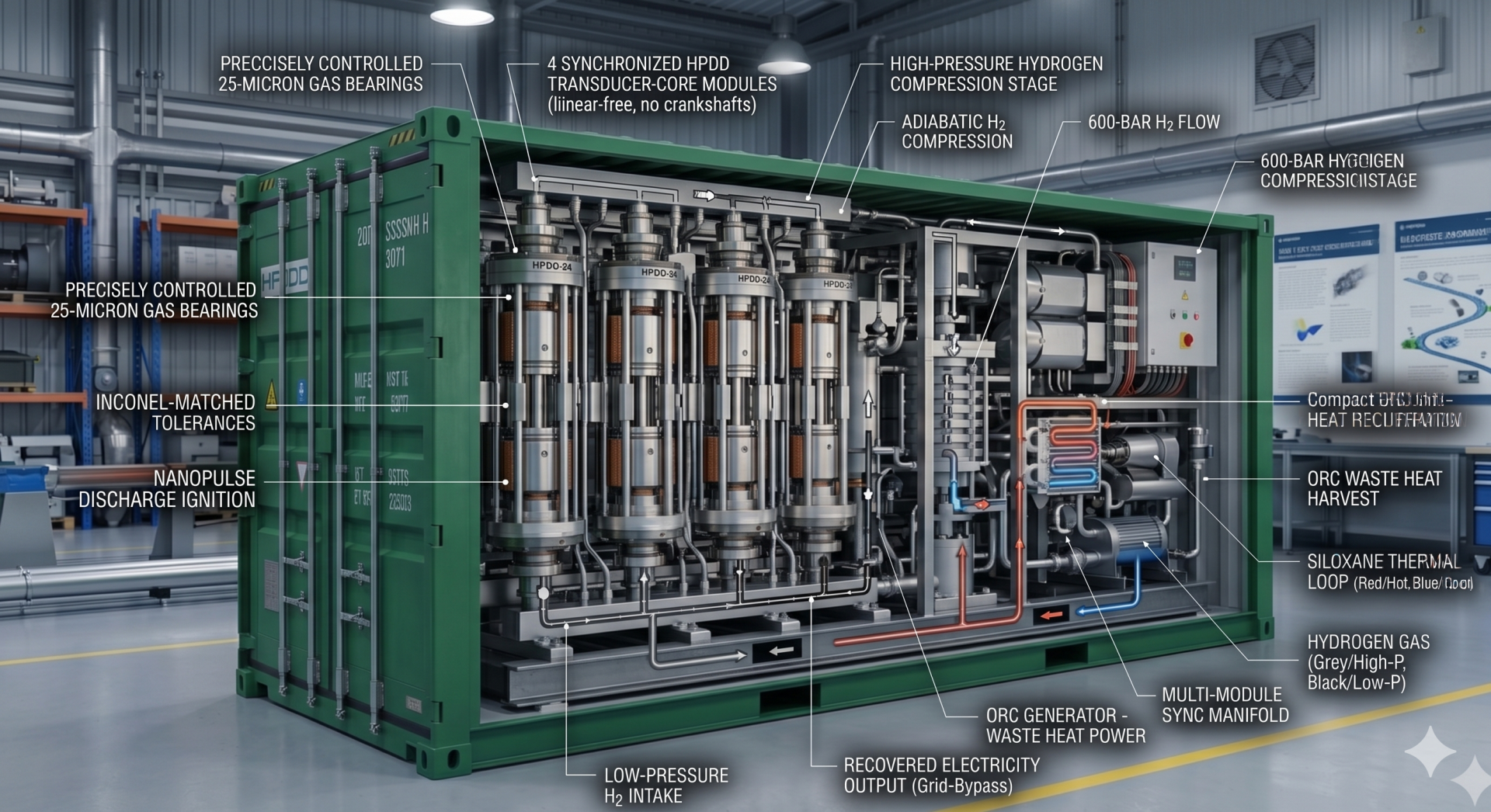

• Synchronization: Utilizing our Multi-Module Synchronization Manifold, we distribute compression across four modules, producing a constant, pulse-free 600-bar output essential for industrial process integrity.

2. Thermal Recuperation as a Strategic Asset

During hydrogen compression to 600 bar, a significant amount of adiabatic heat is generated. While standard compressors treat this heat as a 'loss', wasting energy via parasitic cooling chillers, we capture this potential:

• Siloxane Loop: Our cylinders are encapsulated in an unpressurized siloxane fluid loop, which absorbs compression heat directly at the source.
• ORC Integration: This thermal energy is transferred to an integrated Organic Rankine Cycle (ORC) unit, where it is converted into auxiliary electrical energy.
• Result: The system does not merely pump hydrogen to 600 bar; it functions as a micro-power plant, recovering a portion of its own operational energy demand.

3. Engineering Specifications for 600-Bar Operations

For technical partners and industrial stakeholders, the following parameters define our efficiency advantage:

• Precision Gap: Compression efficiency is secured by our optimized 25-micron gap, ensuring ideal gas sealing under extreme pressures.
• Thermal Stability: Our Inconel 718 components (cylinder boring and piston) compensate for thermal expansion, specifically 109 µm at 230°C, maintaining consistent sealing during continuous 600-bar cycles.
• Frequency Control: By utilizing Frequency-Tuned PPM (Pulse Period Modulation), we dynamically adjust compression to match real-time mass flow demands, maintaining peak operational efficiency regardless of load variability.
