THE AUTONOMOUS WATER OASIS

Dual-Stage Atmospheric Moisture Harvesting Cascade

In hyper-arid regions and remote industrial sites, clean freshwater is often a more critical and volatile asset than baseline electricity. The HPDD v26 platform completely inverts traditional industrial logic: it prioritizes high-volume water production as its primary asset, transforming electricity output into a synchronized secondary commodity.

Without consuming a single drop of external water (such as seawater), a 40 MW HPDD installation generates massive volumes of freshwater. It achieves this by driving two independent, simultaneous moisture-capture systems powered entirely by the internal laws of thermodynamics.

1. HOW THE DUAL-STAGE SYSTEM OPERATES

Instead of consuming electrical energy to filter or desalinate water, the HPDD plant utilizes the raw energy of green ammonia combustion to create freshwater through two distinct phases:

• STAGE 1: Direct Exhaust Condensation This stage captures the pure water vapor generated as a direct chemical byproduct of the clean ammonia oxidation process, immediately after it undergoes supersonic expansion within the De Laval nozzle.
• STAGE 2: Cryogenic Direct Air Capture (DAC) The system channels the extreme, native sub-zero cold (-25°C) generated during nozzle expansion through high-surface-area ambient air radiators. As ambient air passes across these hyper-cooled surfaces, it hits a literal "thermal shock wall," causing atmospheric moisture to instantly condense and drop out as pure water.

2. CORE SPECIFICATIONS AND SYSTEM METRICS

• Primary Fuel Source: Green Ammonia (NH3) or Hydrogen (100% carbon-free combustion).
• Combustion Environment: Strictly stabilized at a 1051°C core temperature utilizing an ultra-lean air mixture (lambda 3.4) to natively prevent thermal NOx pathways.
• Nozzle Kinematics: Supersonic De Laval nozzle architecture inducing an instantaneous thermal drop down to -25°C.
• Parasitic Energy Load for Water: 0.0 kW. The entire dual-stage condensation cascade is driven purely by the system's internal chemical moisture and expansion exergy.

3. THE MATHEMATICAL PROOF (40 MW SYSTEM CALCULATION)

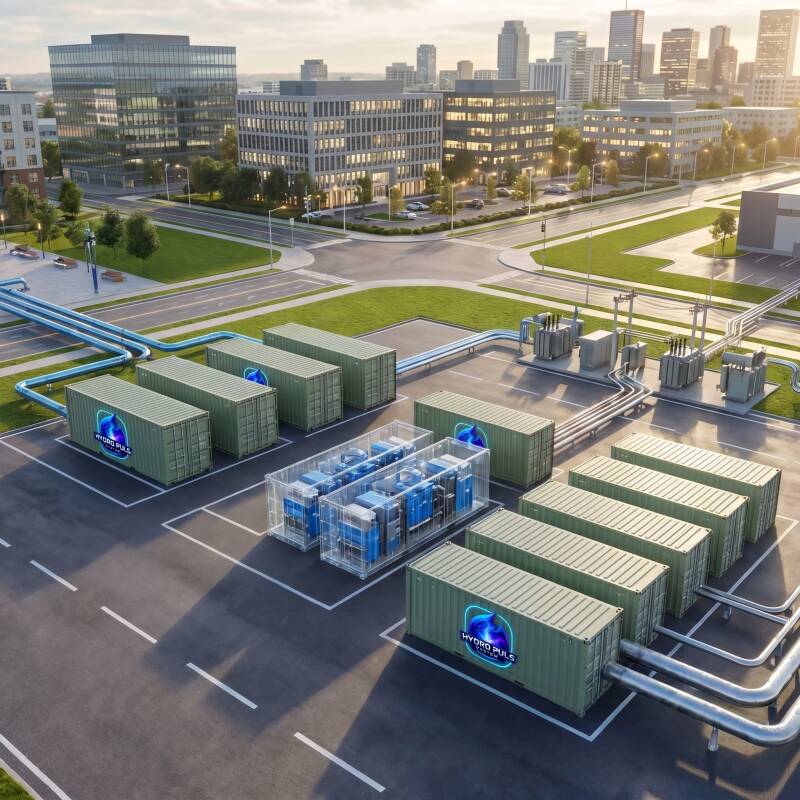

When scaling the micro-isolated HPDD cores into a modular, containerized 40 Megawatt swarm deployment, the absolute volumetric freshwater yield calculations are as follows:

Stage 1 Yield (Exhaust Condensation)

• The Physics: Oxidizing green ammonia splits fuel molecules into harmless atmospheric nitrogen and clean water vapor.
• At 10 MW Baseline: Outputs >2,300 Liters of water per hour.
• At 40 MW Scaled Swarm: 2,300 Liters x 4 = 9,200 Liters of pure water per hour.

Stage 2 Yield (Cryogenic Direct Air Capture from ambient air)

• The Physics: The supersonic nozzle expansion maintains a continuous cryogenic mass flow of 2.0 kg/s at -25°C, which is more than sufficient to force violent moisture condensation even out of dry desert air.
• At 10 MW Baseline: Strips an average of 1,300 Liters of water per hour from the surrounding atmosphere (calculated under standard semi-arid coastal conditions of 30°C and 60% relative humidity).
• At 40 MW Scaled Swarm: 1,300 Liters x 4 = 5,200 Liters of pure water per hour.

4. TOTAL PLANT UTILITY OUTPUT (40 MW PLANT)

When operating as a primary water production facility, a standard 40 MW HPDD containerized cluster delivers an unprecedented aggregate utility profile:

Total Combined Freshwater Output: 14,400 Liters of pure water per hour (this equals 14.4 cubic meters per hour, or 345,600 Liters of water per day).

Parasitic Energy Cost: 0.0 kW (Not a single watt of generated power is sacrificed to produce this water asset).

Net Secondary Electricity Export: Over 24.5 Megawatts of high-density electrical power remains fully available to feed regional grids or heavy machinery after driving the internal hydraulic pulse pumps.

5. WHY THE INDUSTRY IS CHANGING

1. Zero Toxic Brine Production: Unlike traditional seawater desalination plants, this dual system pulls water directly from the clean exhaust and the sky. It generates absolutely zero toxic high-salinity brine, removing environmental liabilities and coastal ecosystem destruction.

2. Weather-Proof Autonomy: Locked at a rigid internal material equilibrium of 230°C (where the matching Inconel boring and piston components expand identically by exactly 109 µm for a flawless mechanical seal), the combustion and water-harvest profiles remain completely unchanged whether operating in an arctic maritime boundary layer or a bone-dry desert environment.

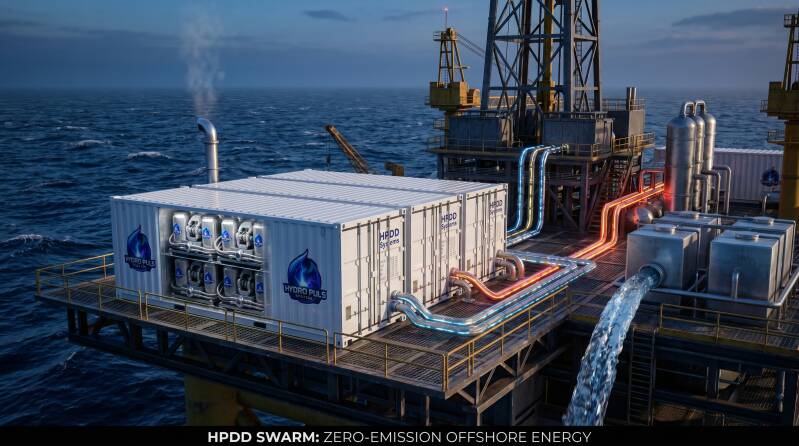

3. Logistical Freedom: Remote mining sites, industrial facilities, and offshore drilling platforms no longer need to choose between building expensive water pipelines or shipping in fresh water. The containerized HPDD swarm delivers both major utility assets immediately on impact.
